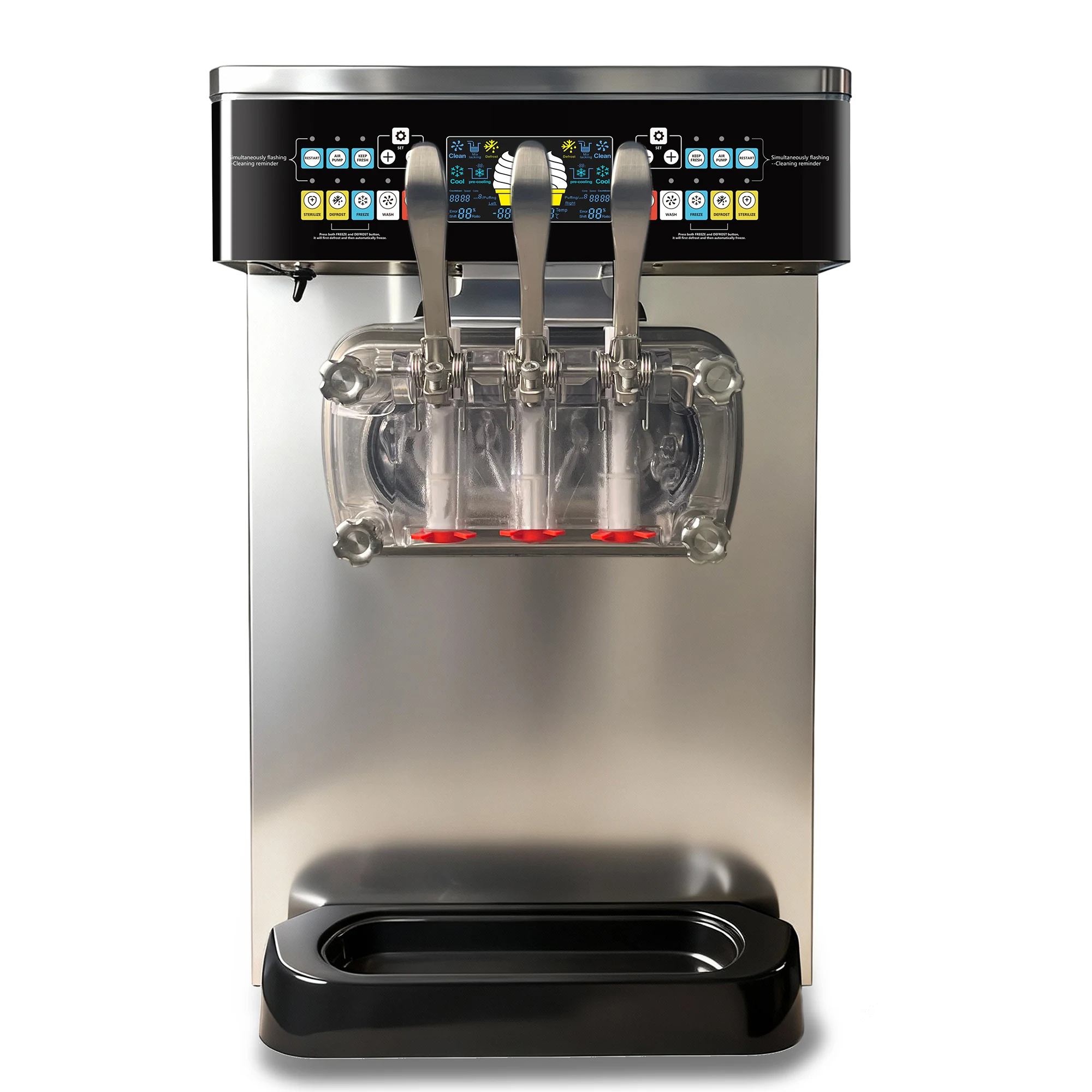

• Smartool SW52REL-TF commercial soft serve machine, stainless steel front view, for ice cream parlors and cafés

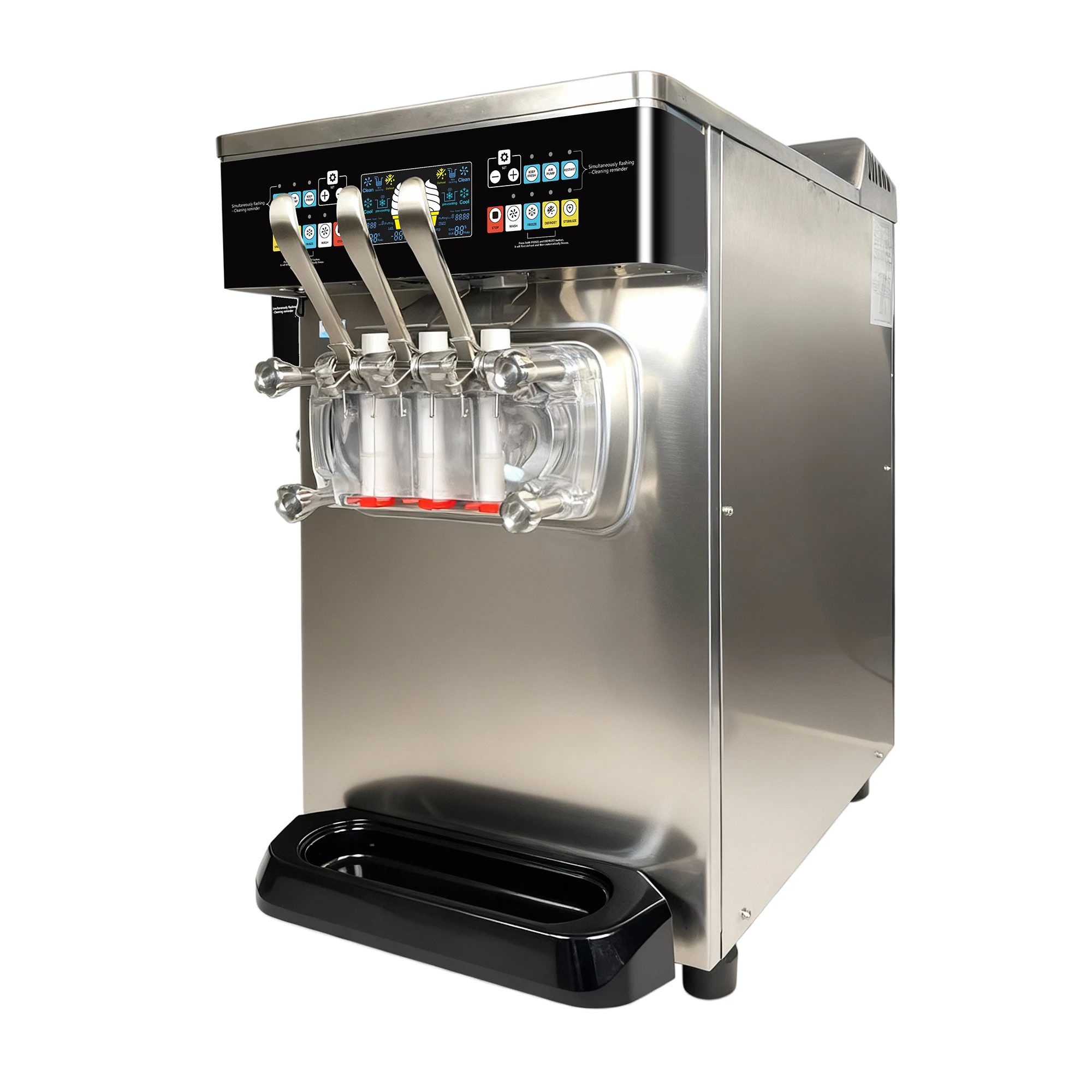

  • Three-quarter view of the SW52REL-TF ice cream machine with stainless side panel, ready for café counters

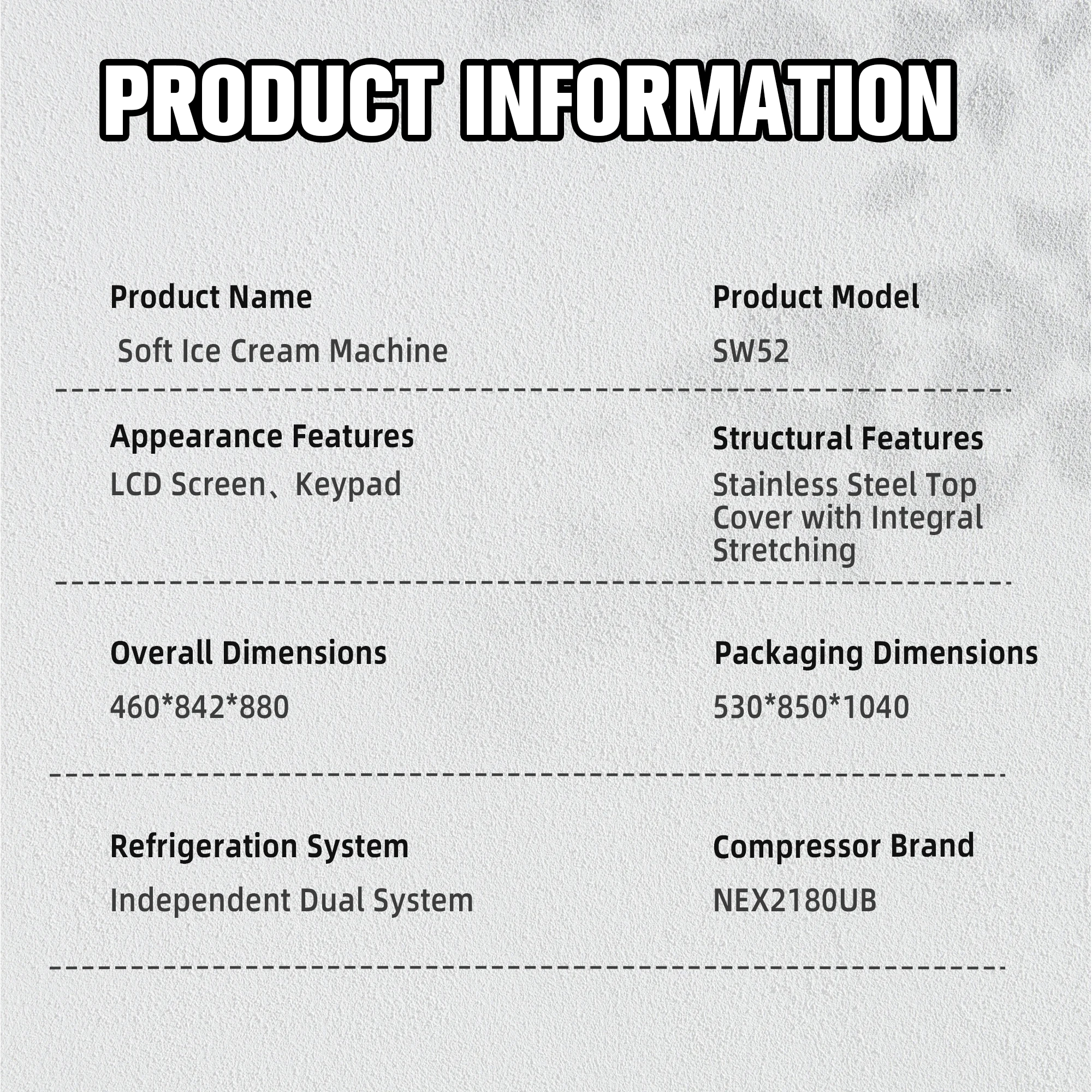

  • Spec infographic for the SW52 soft serve machine used in dessert shops: dimensions and dual refrigeration

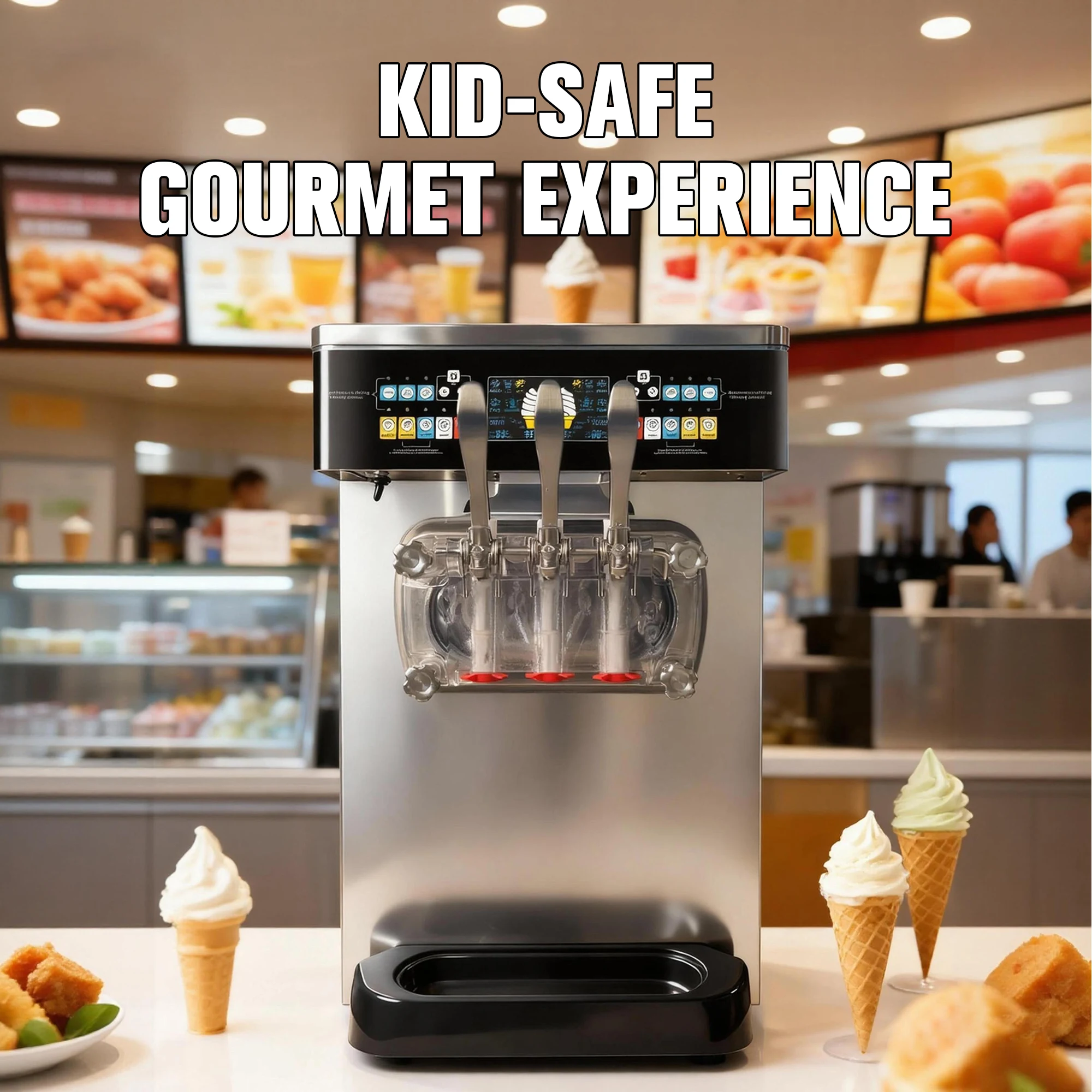

  • SW52REL-TF three-flavor soft serve machine on a fast-food restaurant counter with cones and cake

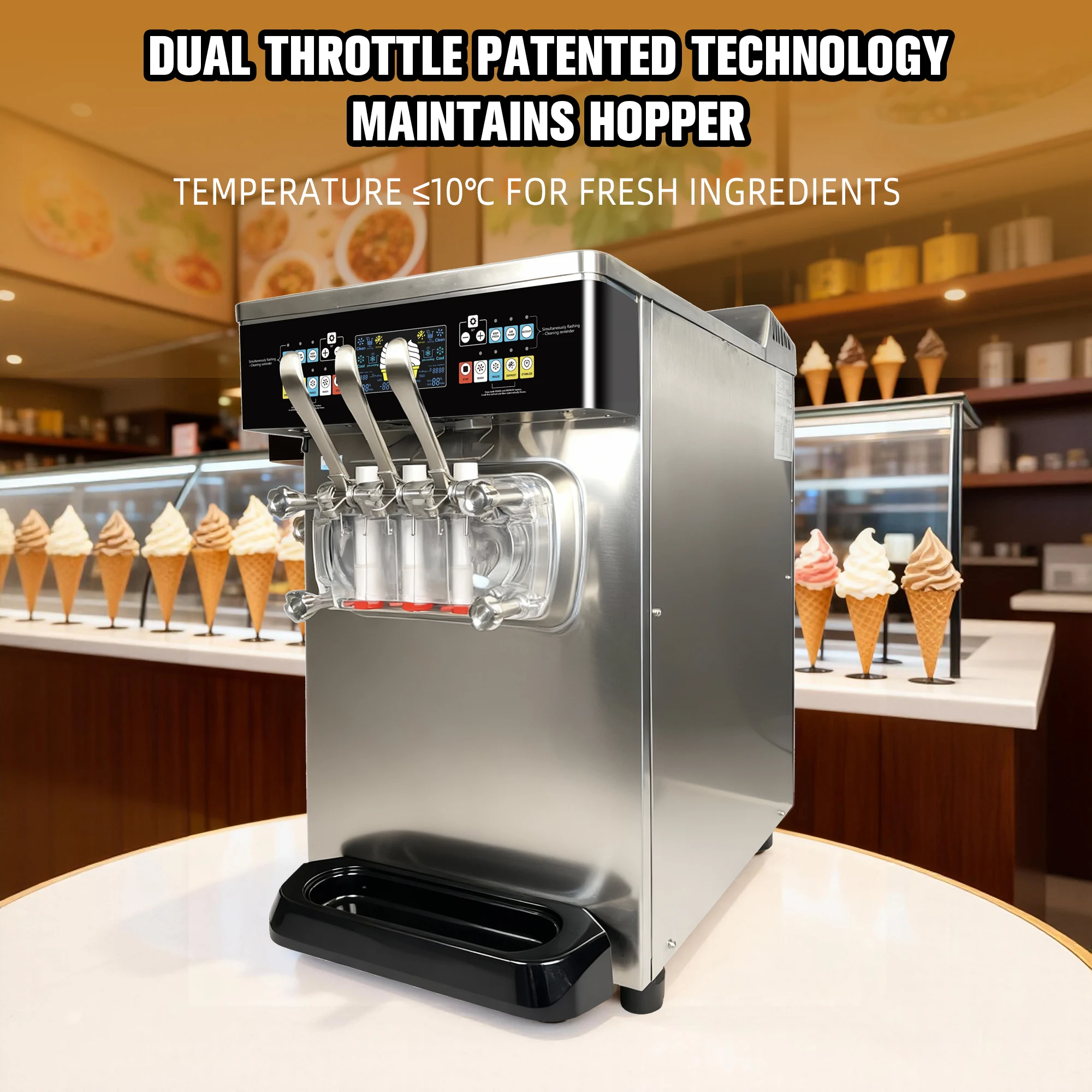

  • SW52REL-TF soft serve machine on a round table in an ice cream shop, with a hopper cooling graphic

Ice Cream Machines

Smartool Commercial Soft Serve Ice Cream Machine - SW52REL-TF

Model SW52REL-TF

Output
48–52 L/h
Hopper
8 L
Freezing cylinder
2.0 L
Voltage
110 V / 60 Hz
  • Durable Construction
  • Independent Dual Refrigeration Systems
  • Intuitive Control
  • Precooling & Preservation
Add to quote
Ask a question

Prefer to talk? +1 (872) 221-0051

  • Warranty: 3 years on core components (compressor, motor, PCB), 1 year on all other parts
  • Quote-based pricing — prices are quoted per order, no online checkout

Overview

Key features

Perfect for cafes, dessert shops, and food trucks! Factory-direct quality with experienced manufacturer expertise—delivering professional competitive advantage.

  • Durable ConstructionSUS201 stainless steel cabinet with SUS304 hopper—seamless connection with evaporator for long-lasting performance
  • Independent Dual Refrigeration SystemsEquipped with Embraco NEX2180UB compressors (R290 refrigerant) for stable cooling and high efficiency
  • Intuitive ControlLCD display with button panel for easy operation and real-time monitoring
  • Precooling & PreservationDual throttle patented technology maintains hopper temperature ≤10℃ for fresh ingredients
  • Comprehensive Safety ProtectionsIncludes speed protection, material level alarm, voltage alarm, and freezing cylinder low-temperature protection
  • Efficient StirringSUS304 stainless steel agitator with magnetic coupling system for smooth, consistent mixing
  • Optimized AirflowBottom air intake and rear-top air exhaust for effective heat dissipation
  • Quiet Operation≤68dB noise level (tested 1m from front in 50dB ambient) for comfortable workspace

Why Choose Smartool SW52REL-TF?

As part of our flagship professional series, the SW52 leverages experienced manufacturer expertise to deliver exceptional performance for small businesses. Factory-direct pricing reduces total ownership costs (TCO) while ensuring top-tier quality—from its seamless stainless steel construction to reliable Embraco compressors. With fast batch formation, dual refrigeration systems, and smart safety features, it maximizes operational efficiency and minimizes downtime. Perfect for cafes and dessert shops aiming to boost ROI with high-quality soft serve, this machine combines durability, precision, and user-friendly design. Trust Smartool’s legacy of excellence to elevate your dessert offerings—get wholesale pricing for your business!

Product details

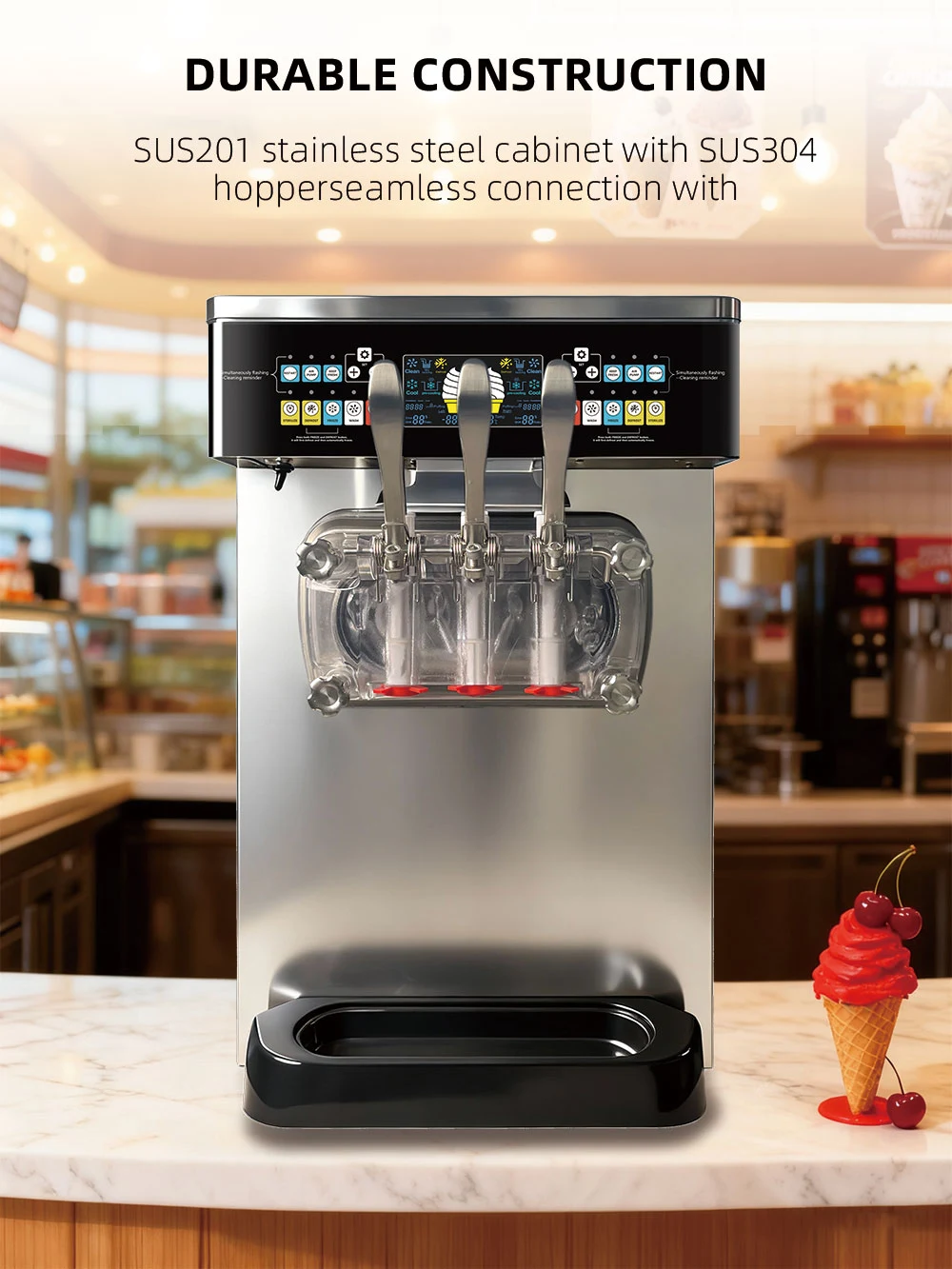

  • SW52REL-TF stainless steel soft serve machine on a marble ice cream shop counter with a cherry-topped cone

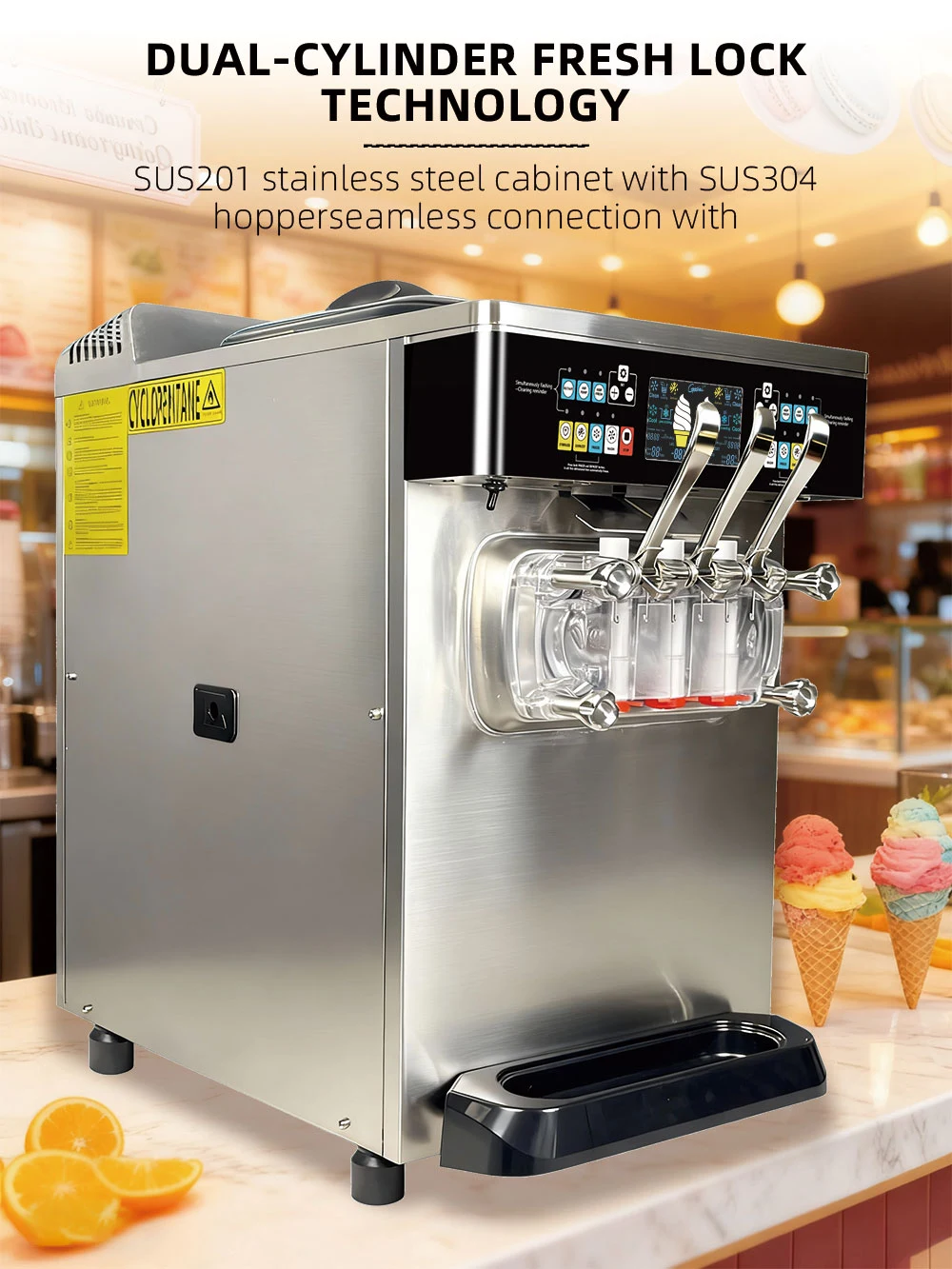

  • Left side view of the SW52REL-TF soft serve machine in a dessert shop with colorful cones and orange slices

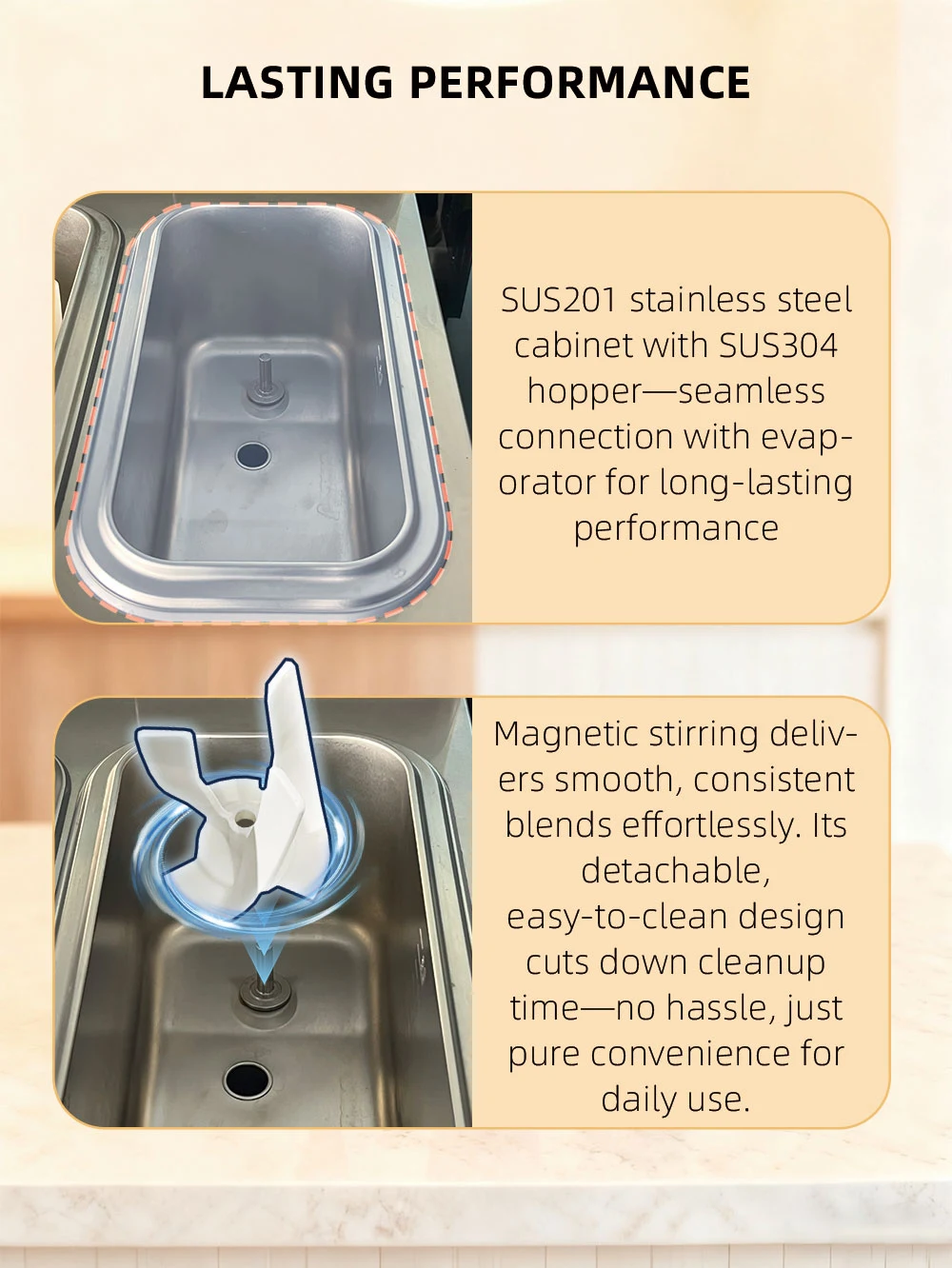

  • Stainless steel hopper and removable agitator close-ups of the SW52REL-TF ice cream machine for parlors

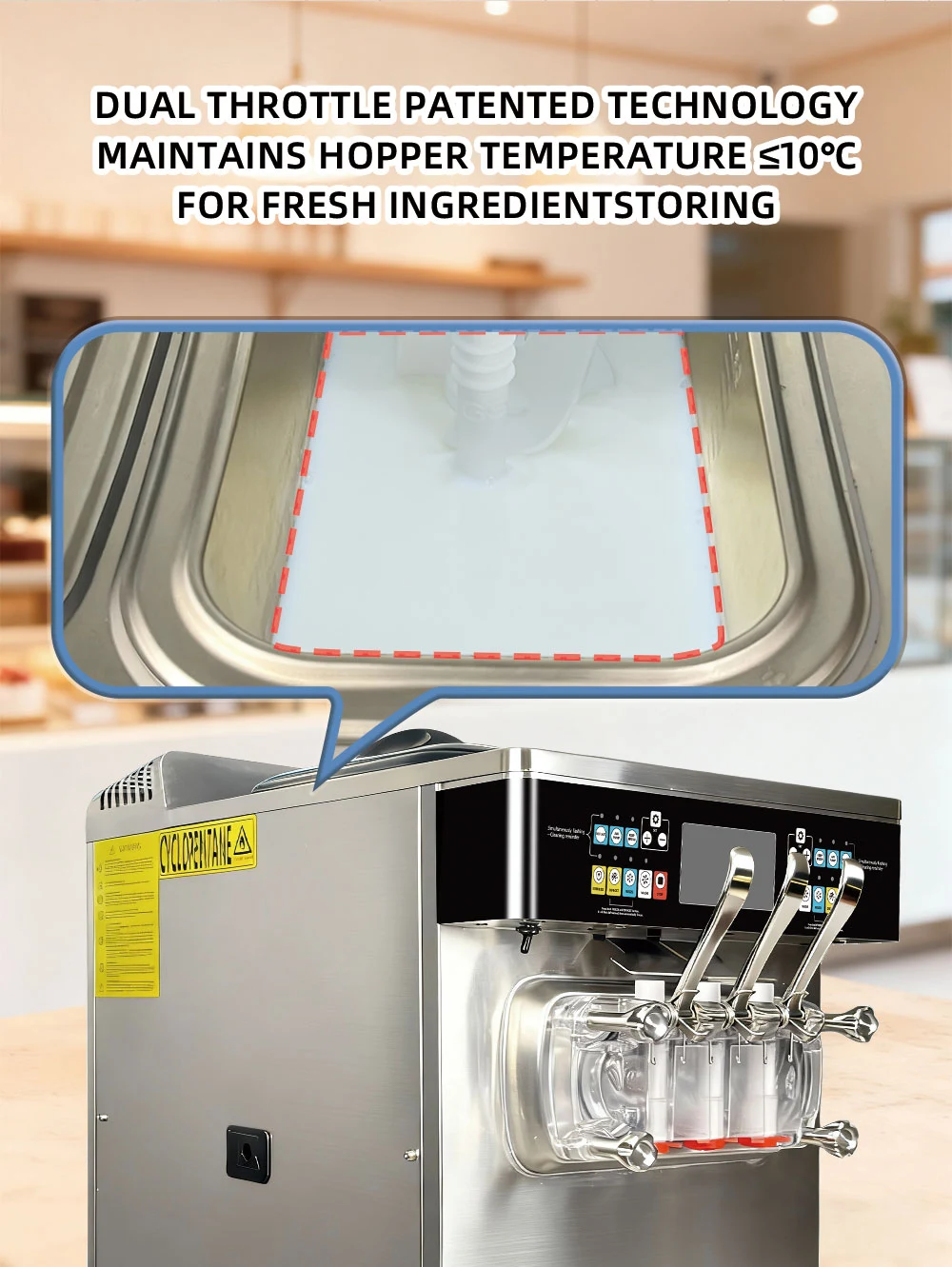

  • Hopper filled with soft serve mix on the SW52REL-TF, showing the hopper cooling feature for ice cream shops

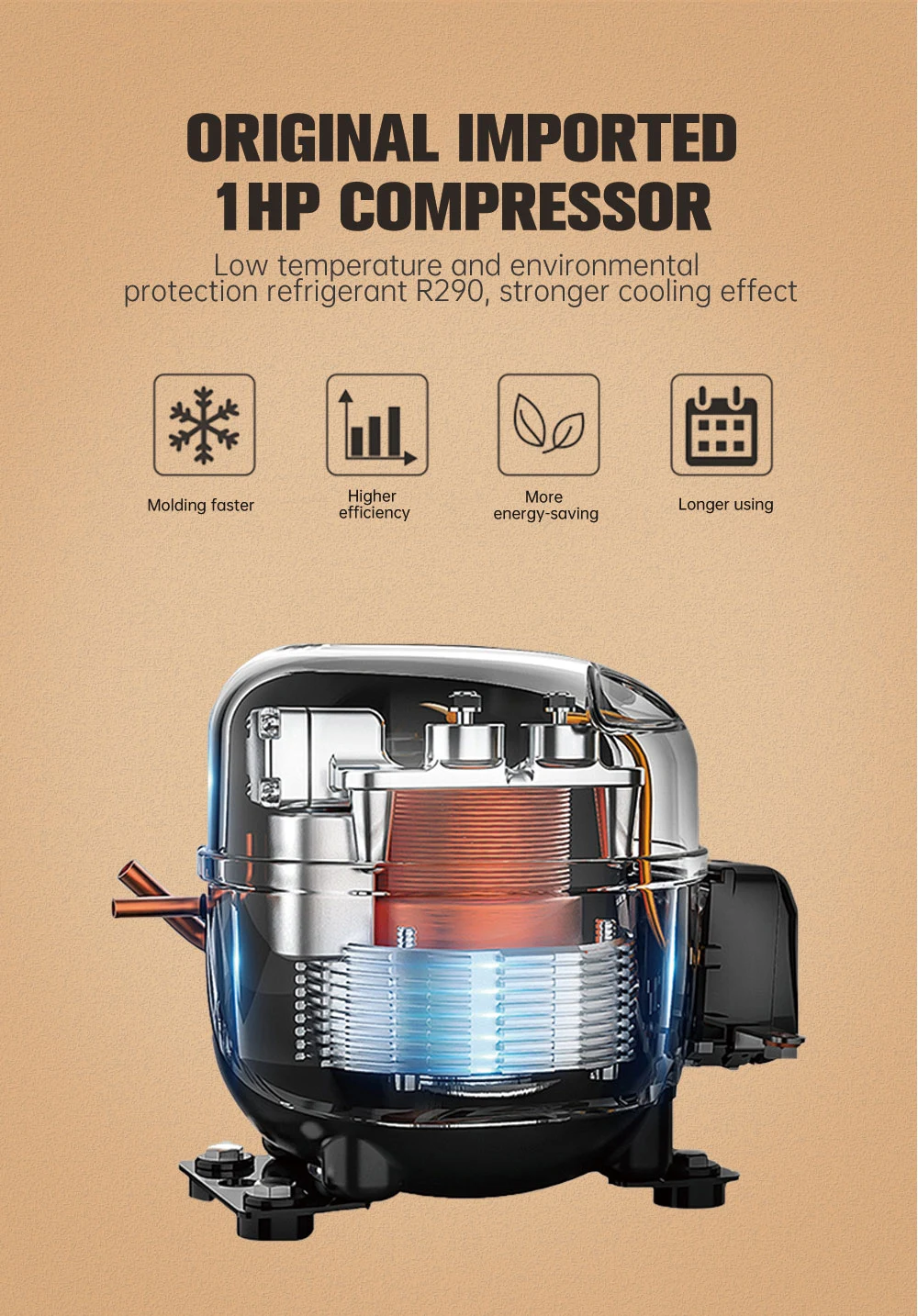

  • Compressor cutaway graphic with R290 refrigerant for the SW52REL-TF soft serve machine used in cafés

Specifications

SW52REL-TF specifications

ModelSW52REL-TF
Rated Voltage/Frequency110 V / 60 Hz
Rated Cooling Power3000 W
Production Capacity48-52 L/h (at 23°C ambient/23°C material temperature)
Hopper Capacity8 L
Freezing Cylinder Capacity2.0 L
First Batch Formation Time10-15 minutes (at 23°C ambient/23°C material temperature)
Dimensions (W × D × H)460 × 842 × 880 mm (including feet)
Net Weight127 kg ±2% (with all accessories)
Design Life5 years
Warranty3 years on core components (compressor, motor, PCB), 1 year on all other parts

Support

Delivery, warranty & support

Logistics & Delivery

Bulk Order Delivery: Customized logistics solutions for large orders

Lead Time: Contact us for current availability and delivery schedules

Commercial Warranty & Support

Warranty: 3-year warranty on core components (compressor, motor, PCB) and 1 year on all other parts

Technical Support: 24/7 technical support for business clients

Parts Availability: Guaranteed parts availability for 5+ years

Installation & Training

Professional Installation: Installation services available nationwide

Operator Training: Free operator training included with bulk orders

Technical Documentation: Comprehensive manuals and technical specs provided

Returns & Service

Return Policy: 30-day evaluation period for business clients

Service Network: Authorized service centers across the US

Replacement Units: Loaner units available during repairs
